Voyager 510 Headset USB Charger

We often use a Plantronics Voyager 510 Bluetooth headset with our computer, so we can a) listen to streaming video/audio without inflicting our choices nearby innocents,  and b) remain untied by a corded headset when we jump up with sudden inspiration.

A previous post explored building a USB charger for our cell phone, and we decided to try the same thing to charge our headset. Over time, we are trying to reduce the number of wall-wart chargers used with our laptop, so we don’t have to carry chargers on business trips and to eliminate wasted electricity when the charger is plugged into a wall socket and not charging a gadget. The USB charger for our cell phone used zero standby current, and we hoped to do the same for the headset charger.

USB Standards

A USB port can supply 100mA at 4.75 to 5.25volts. A higher current, to a maximum of 500mA, can be drawn if the port follows a particular handshaking protocol.

USB Pin-Out
















Voyager 510 Charging Requirements

The headset charger has a barrel type plug with diameter 3.0mm and only 3.5mm in length. Notice that the barrel has a reduced diameter region near the end to help the headset “grip” the plug.

The open-circuit voltage measures 5.5V, and the charging current was 63.8mA. This is within the 100mA current limit of USB, and the voltage is close enough to the USB supply voltage that we suspect a direct connection to the VBus and Gnd conductors of a USB cable will successfully keep the headset charged. See the “Design and Experiment” section of a previous article for more in-depth hand-waving.


Usual Disclaimer: Use this information at your own risk. We are not responsible for damage to your headset or computer.

We couldn’t find a similar connector anywhere on Digikey or other electronics parts vendors we searched. (If anyone has found a source, let us know.) Reluctantly we purchased a spare charger on Ebay for less than $5, just to salvage the connector.

Take a spare USB cord and cut off the series “A” type plug, leaving a few centimeters of cable. Remove a centimeter of outer insulation and shield, exposing four wires. You can cut off the green (D+) and white (D-) wires– they are not needed here.

Cut the spare charger cable 10cm from the connector end, and remove one cm of outer insulation, exposing a red and yellow wire. The red connects to the inner conductor of the plug, 5V, and the yellow connects to outer GND.

Strip insulation 0.5cm from the wires. Thread a length of shrink-wrap tubing on the cable, and twist the red wires together and solder. Twist the yellow wire from the charger plug to the black wire from the USB plug, and solder.

Use a bit of electrician tape to insulate the conductors, and wrap more around both wires for strain relief.

Check continuity with a meter. Slip the shrink wrap tubing over the solder joints and apply gentle heat until snug.


It works!

Related Posts: V176 Cell Phone USB Charger, Power to the Programmers

OS Wars Film Festival

[flash] [video link]

[flash] [video link]

[flash] [video link]

[flash] [video link]

Related Posts: Tech Support Film Festival, Theremoid FilmFest, Theremin Video Film Festival

Lurching Toward Digital

The USA DTV coupon program is out of money. The vouchers are intended to help purchase digital converter boxes for consumers with older televisions (and analog TV tuner cards) needed to convert digital broadcasts to the legacy format after the February 17, 2009 deadline for stopping analog broadcast TV. $1.34 billion was reserved for the program.

Now the advocacy group Consumers Union is urging a delay in the transition date.

[kudos Gizmodo, Washington Post]

Related post: Switching to Digital TV

Solar 2: Mounting the Panel

  • December 31, 2008
  • General

[This is the second in a series of articles describing installation of a solar hot water system.]

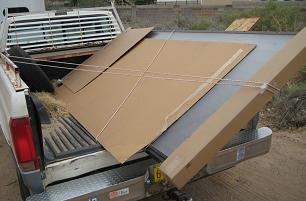

The solar panel was not in stock at AAASolar, so we had to wait a couple of weeks for it to be freighted to the shop. We have access to a truck, so we could pick up the goodies at the shop and not have it delivered.

We could have transported the solar panel and storage tank in one trip, but decided to truck them separately to avoid any possibility of damaging the panel. Cracked glazing would have made me very sad.

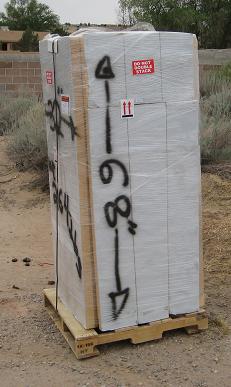

Here is the storage tank protected for the trip:

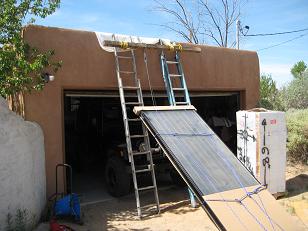

The solar panel is solid and heavy, approximately 150lbs, too massive for one or two people to carry up a ladder. In retrospect, the easiest way to get this panel onto a flat roof is crowd-sourcing: get six good friends or family members with ropes pulling and pushing the panel together. Sadly this particular day I was (almost) friendless, so cleverness was in order. Phil and I fastened a 4×4 crossbar between two ladders, affixed a pulley in the middle, and tied a rope harness around the panel. We parked Phil’s jeep with electric winch in the garage underneath the ladders (barely seen in this photo because the dark-colored vehicle is in shadow).

The winch and pulley pulled the panel up to the roof, while one person on the roof steadied the panel using ropes. Again, this technique worked but is overly complex– use crowd-sourcing instead.

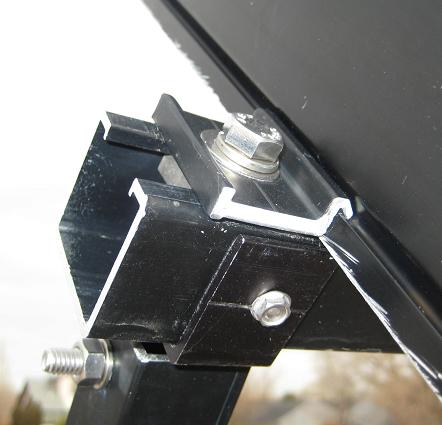

I could not work out how the mounting hardware fastened to the panel, and no documentation was included. AAASolar had no instructions for this particular model, and recommended we contact the panel manufacturer SunEarth. No instructions were found on the web site– a helpful person on the phone faxed us the drawings we needed.

One thing apparent from the drawings is that the panel is mounted  with the shorter side along the roof, unlike most panels we see installed in this part of the country: Good to know!

We needed to bolt the panel mounting hardware to the roof with long lag bolts sunk into roof joists. The problem was finding the roof joists! Two different stud finders gave no consistent readings on the roof (and yes, we did try the trick of using cardboard over this rough surface), and we drilled two or three holes that totally missed a joist. It’s bad enough to be drilling into a perfectly nice roof, but to miss the timber beneath and have to patch the hole is most embarrassing.

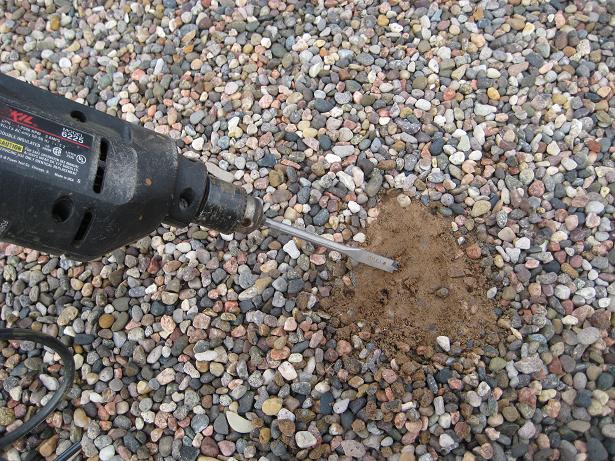

Finally, we hit upon the trick of drilling a test hole at a shallow angle, and then using a coat hanger wire as a probe to test for where the joist is located.

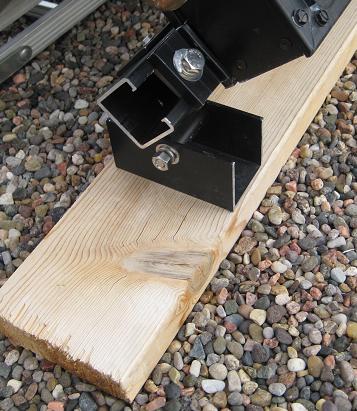

Once we know where one joist is, we should be able to find the next one, assuming the joist spacing is the same as over the garage, where joists are visible. One final indignity: the joist spacing was different on this section of the roof, so we had to drill another shallow angle test hole as before and patch it afterward. We used 2×4 boards as footers to help spread the weight on the roof surface, and screwed long lag bolts through the metal mounting block, the wood footer, and into the roof joist.

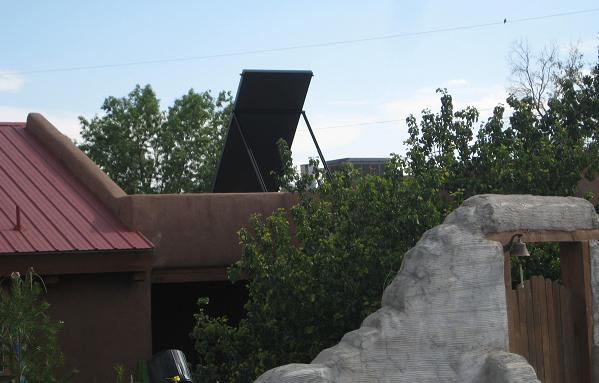

Albuquerque has a 35 degree latitude. We elevated the panel to 55 degrees, to give more sun in the winter when the panel needs it most.

Related Posts: Solar 1, Power to the Programmers

Solar 1

  • December 29, 2008
  • General

Sagebrush Systems “world headquarters” is fortunate to be located in a building with passive solar heating. A large expanse of south-facing windows direct sunlight onto adobe walls and bare brick floors for heat storage.

The furnace hasn’t been turned on for over a decade, so we save a good deal on heating costs. (In full disclosure, the solar adobe construction of our building does not provide complete warmth at our latitude at 5000 feet elevation, but we throw on an extra sweater and become accustomed to somewhat lower temperatures than the 70 degree F office workers expect. For a couple of weeks each year we get consecutive days of overcast weather, requiring the fireplace to be used.)

We plan further energy independence, with solar hot water, possibly a supplemental solar hot air heater, and eventually a grid-tied photovoltaic system to supply all electricity needed by Sagebrush.

Our latest energy project was to install a solar hot water heating system. The area is blessed with plenty of solar exposure, averaging over 300 days of sunshine a year. A few periods in winter might have cloudy days extending for a solid week or two. We do have hard freezes, so a glycol system is necessary. (A drain-back system might work here, but based on the number of burst water lines we needed to fix in supposedly drained water lines running up to our evaporative cooler, we decided to use a glycol system.)

Active glycol systems can use an electronic controller to monitor temperatures and turn the circulating pump on and off, or use a pump connected to a photo-voltaic (PV) panel which runs the pump only when the sun shines. We wanted a PV system, based on the experience of a friend with a system installed a few decades ago, whose original manufacturer no longer exists and has difficulty getting the controller serviced. We also confess to a pyschological satisfaction of using no utility energy, even the minimal amount needed to run a circulating pump.

We wanted a kit-based system, so we could participate in installation and learn better how to maintain and use the equipment– and because it’s a challenge. Someday perhaps one could go to a big-box “home improvement” store and buy a solar hot water system in kit form or completely installed, but that day is not here, so we have to shop on the Internet. This system from looks well-engineered for do-it-yourselfers, with a complete step-by-step installation manual and no soldering required. Their solar panels are also extremely light-weight, which should be an advantage for high slanted rooftop installations. Ultimately we decided against this system because of the plastic glazing: We get a LOT of UV radiation here, hard on plastics, and we recently replaced an acrylic sun roof that was thoroughly destroyed after twenty years of sun exposure. Perhaps these solar panel glazings have superior UV resistance, but how can a buyer prove that?

Ultimately we purchased a solar kit with tempered glass panel glazing, ordered from the venerable AAASolar, located in nearby Albuquerque. It doesn’t come with a complete install manual like the system above, but they did offer to provide reprints of articles from Home Power magazine dealing with installation. The article “DWHW Installation Basics Part 2” from June 2003 was particularly helpful. We also save on shipping charges, since they are so close, allow local pickup, and we have a truck available. The kit includes solar panel, storage tank, PV panel, pump, assorted valves and gauges. You supply plumbing available from your local hardware store. Propylene glycol and pipe insulation are extra.

In future posts we document our adventures (and minor missteps) in installing the system:

Solar 2: Installing the panel.
Solar 3: Connecting everything.
Solar 4: Starting up and running, lesson, and future.

Related Posts: Power to the Programmers
